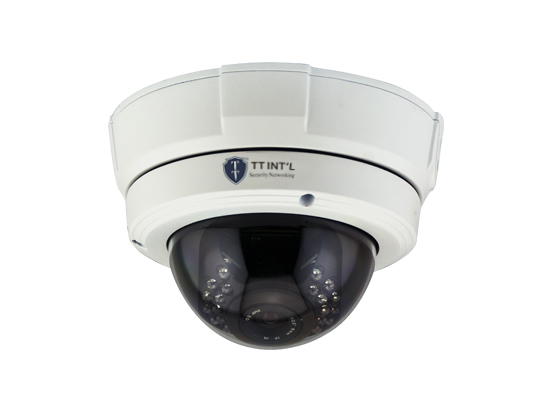

H.265 4K 8.0mp WDR IP Dome Camera

Features:

H.265 4K 8.0mp IP Dome Camera

with Super Star-light and WDR

1/2.5” SONY HD WDR Sensor

Super H.265 Compression

Built-in PoE, Super Star-Light

3.2mm True 4K Lens

30pcs of Φ5 IR LEDs

Built-in IR Cutter Filter

With Two-way Audio, Alarm in, RS-485, Restore

TF Card/ Alarm out / WIFI (optional)

Support P2P, CMS, Dahua and Hikvition's Private Protocol and CMS

App. for IOS & Android

Support digital wide dynamic, 3D noise reduction, intelligent noise reduction

Intelligent detection, five anomalies detection, three behavioral analysis

Weatherproof for Outdoor & Indoor use


Enquiry

Specifications Send Inquiry Related Products


Model

TT-X8MV4P

Image Sensor

1/2.5" Progressive Scan CMOS

Min. Illumination

0.001 Lux @ (F1.2),  0 Lux with IR

Shutter Time

1/50 s ~ 1/10,000 s

Lens

3.2mm True 4K   Lens

Day& Night

Auto Switch IR Cutter Filter

Wide Dynamic

140 dB

Digital Noise Reduction

3D DNR

Compression Standard

Video Compression

H.265+/H.265/H.264

H.265Code Profile

Main Profile

Video Bit Rate

32Kbps~16Mbps

Compression Standard

Video Compression

H.265 / H.264+ / H.264

H.265 Code Profile

Main Profile

Video Bit Rate

32Kbps~16Mbps


Max. Image Resolution

4096*2160

Frame Rate

4096*2160(25/30FPS)

Image Enhancement

AGC, 3D DNR, WDR, Sharpness

Image Settings

Supports Brightness, Contrast, Saturation,   Sharpness, White Balance; AWB, AGC, AE (Automatic Exposure Control); Supports   privacy area occlusion; OSD overlay; Image rotation: Normal 90 ° / 270 °.   Automatic, manual or automatic color to black and other witching methods

Day/Night Switch

Auto / Outside Trigger / Color / Black   White

Smart Functions

Smart    Code

Support low code rate, low delay, ROI   region coding, support 4 ROI area

Smart Detection

Support mask detection, out of focus   detection, brightness detection, color detection, sound detection, detection   of remnants, motion detection, virtual cordon, regional invasion

Smart Control

Support intelligent control alarm startup,   alarm off, fault clearing, intelligent noise reduction

Network

Network Storage

NVR / PC / Phone

Network Interface

10M/100M adaptive Ethernet port

Protocols

IPv4/IPv6,802.1x,HTTPS, HTTP,   TCP/IP, UDP, RTP, RTCP, UPNP, RTSP, SMTP, NTP, DHCP, DNS, PPPOE, DDNS, FTP

System Compatibility

ONVIF2.42 / GB28181 / Hikvision   / Dahua

Number of Client Visits

Support 8 users login at the   same time

Browser

IE, Firefox, Chrome

Interface

Communication Interface

1* RJ-45 10M/100MEthernet Port

Audio Input

AV Port

Audio Output

AV Port

Serial Port

RS-485

Reset button

1*Reset button

Alarm

1* Alarm output (Optional)

Alarm

1* Alarm Input

wireless

WIFI (Optional)

Micro SD

Micro SD/TF Card, Support Max.   128G (Optional)

General

Operating Temp.

-30 °C ~ 60 °C (-22 °F ~ 140 °F)

Operating Humidity

Humidity 95% or less (non-condensing)

Power Supply

12VDC±25%, PoE (IEEE 802.3af Class3)

Power Consumption

Max. 7.5W

Weather Proof

IP66, IK10

IR Range

25-30 Meters

Dimensions (mm)

165mm (W) *120mm (H)

Net Weight (kg)

1.5kg


Send Inquiry

Please enter the characters below

Enter your inquiry details such as product name, color, size, MOQ, FOB, etc.

Send Inquiry

Please enter the characters below

Enter your inquiry details such as product name, color, size, MOQ, FOB, etc.

H.265 4CH PoE NVR 2HDD...

PoE NVR

4 Megapixel Array IP B...

Bullet IP Camera

16-CH 4K H.265 NVR 2HD...

16CH

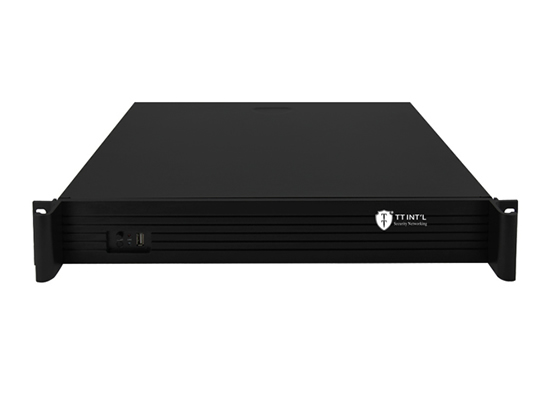

H.265 36CH PoE NVR 4HD...
