Q3

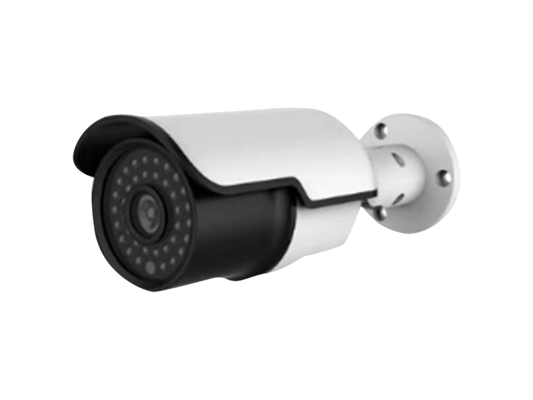

2MP 1080P HD Outdoor IR IP Bullet Camera

Features:

Outdoor IR Bullet IP Camera

3.6mm Mega Pixel Board Lens

36 pcs Φ5 IR LEDs

Built-in IR Cutter Filter

PoE and Two-way Audio Optional

Alarm in, BNC Out, RS-485, USB, Restore(Optional for 2.0mp/4.0mp)

TF Card (Optional for 2.0mp/4.0mp)

Support P2P, CMS, VPN and Hikvition's Private Protocol

App. for IOS & Android

Support 4 intelligent ROI area setting, improve the image quality of the area

Supports intelligent encoding, automatically reduce image quality when video is stationary

and automatically enhance image quality when video in motion.

Support for shelter, out of focus and low-light intelligent detection

Cable through Bracket

Weatherproof for Outdoor & Indoor use


Enquiry

Specifications Send Inquiry Related Products



Model

TT-X13MQ3

TT-X2MQ3

TT-X4MQ3

Image  Sensor

1/2.7" Progressive

Scan CMOS

1/2.7" Progressive

 Scan CMOS

1/2.7" Progressive Scan CMOS

Min.  Illumination

0.01Lux @(F1.2,AGC on)

0Lux with IR

0.01Lux @(F1.2,AGC on)

0Lux with IR

0.02Lux @(F1.2,AGC on)

0Lux with IR

Shutter time

1/50 s ~ 1/10,000s

1/50 s ~ 1/10,000s

1/50 s ~ 1/10,000s

Lens

3.6mm Mega Pixel Board Lens

Day& Night

Auto Switch IR Cutter Filter

Wide Dynamic

120 dB

120 dB

90 dB

DNR

3D DNR

3D DNR

3D DNR

Compression Standard

Compression

H.264 + / H.264 / MPEG

H.264 + / H.264 / MPEG

H.265 / H.264 / MPEG

H.264 Code

Main Profile

Main Profile

Main Profile

Video Bit Rate

32Kbps~16Mbps

32Kbps~16Mbps

32Kbps~16Mbps


Resolution

1280*960

1920*1080

2592*1520

Frame Rate

 1280*960 (25/30fps)

1920*1080 (25/30fps)

2592*1520 (25/30fps)

Image Enhancement

AGC, 3D DNR, WDR, Sharpness

Image Settings

Motion Detection, Privacy Mask, Video Tampering

Day/Night Switch

Auto/Outside Trigger/Color/Black White

Network

Network Storage

NVR & CMS

Protocols

TCP/IP, UDP, ICMP, HTTP, VPN, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTMP, Hikvition's Private Protocol

General Function

Anti-Flicker, Heartbeat, Mirror, Password Protection, Privacy Mask

System Compatibility

ONVIF2.4, PSIA, CGI, SPR

Browser

IE

Interface

Interface

1* RJ-45 10M/100M Ethernet Port

Serial Port

NC

RS-485 (Optional)

Reset button

NC

1* Reset button(Optional)

Video Port

NC

BNC (Optional)

Micro SD

NC

Micro SD/ TF (Optional)

Alarm

NC

1* Alarm Input (Optional)

Audio Input

AV Port (Optional)

Audio Output

AV Port (Optional)

wireless

NC

WIFI (Optional)

General

Operating Temp.

-30 °C ~ 60 °C (-22 °F ~ 140 °F)

-20°C ~ 50 °C (-4 °F ~ 122 °F)

Operating Humidity

Humidity 95% or less (non-condensing)

Power Supply

12 VDC ± 25%

PoE

PoE (IEEE 802.3af Class3) (Optional)

Power Consumption

Max. 9.5W

 Max. 10W

 Max. 11.5W

IP Grade

IP66

IR Range

25 Meters

Dimensions (mm)

165mm (L) * 70mm (W) * 65mm (H)

Net Weight (kg)

0.5kg
