V7

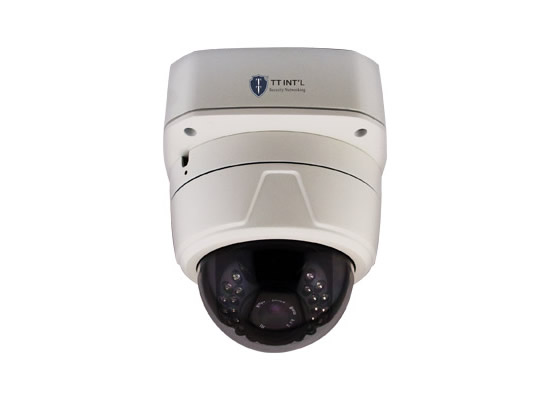

4MP Vandal Proof Metal IR IP Dome with Motorized Zoom Lens

Features:

Vandal Proof Metal IR IP Dome

30pcs Φ5 IR LEDs

Built-in IR Cutter Filter

PoE and Two-way Audio Optional

Alarm in, BNC Out, RS-485, USB, Restore(Optional for 2.0mp/4.0mp)

TF Card (Optional for 2.0mp/4.0mp)

Support P2P, CMS, VPN and Hikvition's Private Protocol

App. for IOS & Android

Support 4 intelligent ROI area setting, improve the image quality of the area

Supports intelligent encoding, automatically reduce image quality when video is stationary

and automatically enhance image quality when video in motion.

Support for shelter, out of focus and low-light intelligent detection

Weatherproof for Outdoor & Indoor use


Enquiry

Specifications Send Inquiry Related Products

Model

TT-X13MV7VI

TT-X2MV7MT

TT-X45MV7MT

Image Senor

1/2.7" Progressive
Scan CMOS

1/2.7" Progressive
Scan CMOS

1/2.7" Progressive
Scan CMOS

Min
lllumination

0.01Lux @(F1.2,AGC on)
0Lux with IR

0.01Lux @(F1.2,AGC on)
0Lux with IR

0.02Lux @(F1.2,AGC on)
0Lux with IR

Shutter time

1/50 s ~ 1/10,000s

1/50 s ~ 1/10,000s

1/50 s ~ 1/10,000s

Lens

2.8-12mm  Mega Pixel

 Varifocal Lens

2.8-12mm Motorized Lens (4X Optical)

Day& Night

Auto Switch IR Cutter Filter

Wide Dynamic

120 dB

120 dB

90 dB

DNR

3D DNR

3D DNR

3D DNR

Compression   Standard

Compression

H.264 + / H.264 / MPEG

H.264 + / H.264 / MPEG

H.265 / H.264 / MPEG

H.264 Code

Main Profile

Main Profile

Main Profile

Video Bit Rate

32Kbps~16Mbps

32Kbps~16Mbps

32Kbps~16Mbps


Resolution

1280*960

1920*1080

2592*1520

Frame Rate

 1280*960   (25/30fps)

1920*1080 (25/30fps)

2592*1520 (25/30fps)

Image   Enhancement

AGC, 3D DNR, WDR, Sharpness

Image Settings

Motion Detection, Privacy Mask, Video Tampering

Day/Night Switch

Auto/Outside Trigger/Color/Black White

Network

Network Storage

NVR & CMS

Protocols

TCP/IP, UDP, ICMP, HTTP, VPN, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTMP, Hikvition's Private Protocol

General Function

Anti-Flicker, Heartbeat, Mirror, Password Protection, Privacy Mask

System   Compatibility

ONVIF2.4, PSIA, CGI, SPR

Browser

IE

Interface

Interface

1* RJ-45 10M/100M Ethernet Port

Serial Port

NC

RS-485 (Optional)

Reset button

NC

1* Reset button(Optional)

Video Port

NC

BNC (Optional)

Micro SD

NC

Micro   SD/ TF   (Optional)

Alarm

NC

1* Alarm Input

Audio Input

AV Port   (Optional)

Audio Output

AV Port   (Optional)

wireless

NC

WIFI (Optional)

General

Operating Temp.

-30 °C ~ 60 °C (-22 °F ~ 140 °F)

-20°C ~ 50 °C (-4 °F ~ 122 ° F)

Operating   Humidity

Humidity 95% or less (non-condensing)

Power Supply

12 VDC ± 25%

PoE

PoE (IEEE 802.3af Class3) (Optional)

Power   Consumption

Max. 9.5W

 Max. 10W

 Max. 11.5W

IP Grade

IP66, IK10

IR Range

30 Meters

Dimensions (mm)

140mm (W) *170mm (H)

Net Weight (kg)

1.5kg
