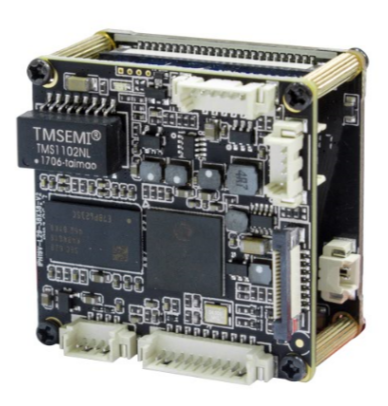

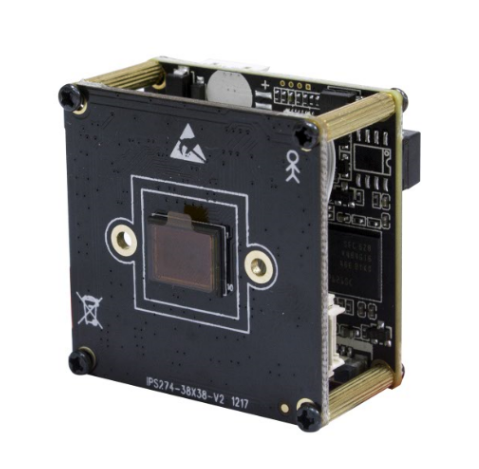

12mp Star-light IP Camera Module
Features:
12MP STAR LIGHT IP CAMERA MODULE
MODEL: TT-IP12MP
1.7” SONY HD Star-Light Sensor, Color 0.0001Lux@F1.2
Super H.265 Compression
Latest Hisilicon 3519V100 Solution
H.264/H.265 Video Compression, Support Dual-Stream
Max Resolution: 4000×3000@15fps
Interface: Audio Input/Output, Alarm Input/Output, Video Output, SD/TF Card Slow, USB Port, Restore Key, RS-485
Specifications Send Inquiry Related Products
SPECIFICATION:
Model | TT-IP12MP |
Hardware | |
Sensor | Hi3519V100; 1/1.7” SONY IMX226 CMOS Sensor |
Min. Illumination | Color 0.0001Lux@F1.2 |
S/N Ratio | ≥50dB(AGC OFF) |
WDR Range | Digital WAD: ＞80db |
Interface | |
Audio Input | 1 Channel Input, Level 2Vp-p, impedance 1kΩ, support MIC / pickup input |
Audio Output | 1 Channel Output, impedance 16Ω, 30mw power output, support headphones or amplifier |
Video Output | 1*HDMI 1.4a HD digital video output or CVBS SD composite video output |
Storage | Micro SDHC/SDXC Slot, Max. 128GB |
Alarm | 2 Channel Input, Low Level, Vin <= 0.3V / 1 Channel output, switch signal, 1A / 125VAC, 1A / 30VDC |
Restore | 1* Restore Key |
PTZ | Support 1* RS-485 Port |
USB Port | 1* USB Port, Support U-Disk, Support Storage on Storage Card. |
Auto Iris Port | 1* Auto Iris Interface, Support DC Drive Auto Iris Lens |
Video Code | |
Compression Format | H264, Baseline/Main Profile/High Profile Code; H.265 Main Profile Code |
MJPEG Code | |
Main Stream | 4000*3000，1-15 fps |
4096*2160 DCI 4K, 1-25 fps | |
3840*2160 UHD 4K,1-25(30)fps | |
2592*1944，1-25(30)fps | |
Sub-stream | 640*480, 1-25(30) fps 320*240, 1-25(30) fps |
160*112，1-25(30) fps | |
Video Compression Bit Rate | 32Kbps-16Mbps Continuously Adjustable, Support CBR/VBR |
Subtitle overlay | Support channel name, date and time, stream information superimposed, superposition position adjustable |
Data transmission and storage | |
Data transmission | Video, image files |
Storage | Manual, automatic (cycle, timer, alarm switch, motion detection) |
Alarm Data Transmission | FTP, E-mail, browser, management software |
Protocols | TCP / IP, UDP, RTP, RTSP, RTCP, HTTP, DNS, DDNS, DHCP, FTP, NTP, PPPOE, SMTP, UPNP |
Wi-Fi Protocols | 802.11b / g / n, support WEP, WPA, WPA2 encryption protocol |
ONVIF Protocol | Standard ONVIF 2.4 protocol |
Client IE | Support IE6.0 and above (device embedded Web Server) browser browsing, support 9 users concurrent access (MAX) |
Smart Phone Client | Support iPhone, iPad, Android platform |
Others | |
Power Supply | Standard DC 12V (POE optional) |
Power | Maximum 5W |
Size | Sensor Board Size: 38 * 38mm |
