H

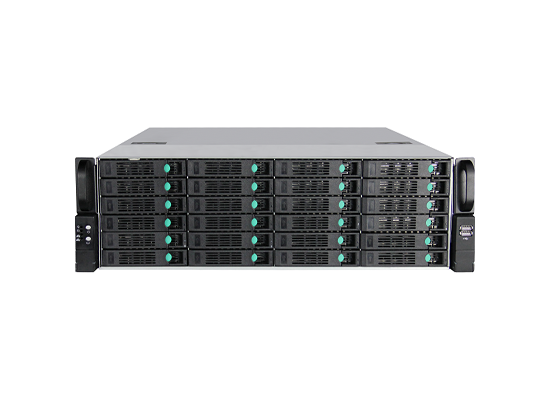

H.265 Smart NVR 128 CH 24 HDD

特征:

HDD installation, reliable and easy-maintainable

Support 24HDD, HDD’s hot-swap

Support SPR supper protocol , plug & play , IPC no needs IP

Support Third-party ONVIF, RTSP standard network camera

Support ONVIF outward passageway, can compatible with ONVIF standard

Video management software, and support GB28181 standard protocol

Support 4K video preview , storage and playback

Support H264+, H264 encoding device self-adaptive connection

2x HDMI, 2x VGA heterologous output, support 4K high resolution output

New GUI, support start recording with one key

Support IPC centralized management, including IPC parameter configuration, information import/output, two-way audio, upgrade, etc

Support double password to do video playback and backup

Support motion detection data filler when do playback, support video summary playback

Support time-phased playback, assigned the video to multi-screen do different playback at same time

Support smart search, playback and backup

Support smart channel grouping

Support instant playback for screen preview during multi-channel display mode

Max support 16ch 1080P playback and multi channels reverse playback

Support multi-channel image play and thumbnail play

Support smart detection like: target counting, goods leave over, goods loss, area entering/leaving, virtual entering/leaving


咨询

产品规格 发询盘 相关产品



Model No.

TT-NVR512824

Operation System

Embedded LINUX   system

Image Code   Control

Image code   quality adjustable, variable   bit stream and limited bit stream   optional

Dual Stream

Each channel can   set main stream and sub   stream

Video Standard

H.264/H.265   self-adaption

Monitoring Image   Quality

4K/5MP/3MP/1080P/960P/720P

Image Motion   Image

Each screen can   set multiple detection   areas and set 6-level sensitivity(IPC Support)

Recording   Playback Quality

Any   1ch/4ch/9ch/16ch playback   simultaneously

Region Cover

Every channel   can set 4 cover   regions(IPC Support)

Recording Mode

Support manual,   auto, motion detection,   alarm trigger record mode

Backup Way

Support HDD,   U-disk, USB mobile HDD, USB   DVD-RW, network storage and backup(IPC   Support Partial)

Operation Way

Mouse, keyboard

Local Login

User name and   password

Recording   Storage

Local HDD,   network

Intelligent   Analysis Channels

8CH

Intelligent   Analysis Function

Target Counting,   Object   Detection, Area Detection, Virtual Cordon, Sound Alarm, License   Plate   Detection, Face Detection, Fire Detection, Video Diagnose,   Transformation   Scene, License Plate Black List

External Ports


Video Input(mode)

128ch input, support   4K/5MP/3MP/2MP

64ch preview mode   without smart analyzing function

36ch preview mode   support 8ch smart analyzing function

Audio Input

According to   network video channel   number do 1:1network audio input

Video Output

2×VGA+2×HDMI

Audio Port

1ch RCA input,1ch RCA output

Network Port

2×10M/100M/1000M

RS485 Port

Full duplex   standard 485 ports

USB Port

1×USB3.0,2×USB 2.0

Alarm Input

16ch

Alarm Output

8ch

HDD

HDD Port

24×SATA+1×E-SATA   HDD port

Max Capacity

Each port   supports MAX 6TB HDD

Mobile   Surveillance

Support(iPhone,   Windows Mobile,   BlackBerry, Symbian, Android)smart phone

Power Supply

ATX110-220V 400W   50-60Hz

Power   consumption

≤50W(without HDD)

Working   Temperature

-10℃~+55℃

Working Humidity

10%-90%

Size

437mm×483mm×143mm

Weight (without   HDD)

about 23kg

Package

1pc/Carton,Size:752mmX577mmX312

Installation Way

Desktop   installation, standard cabinets   installation
