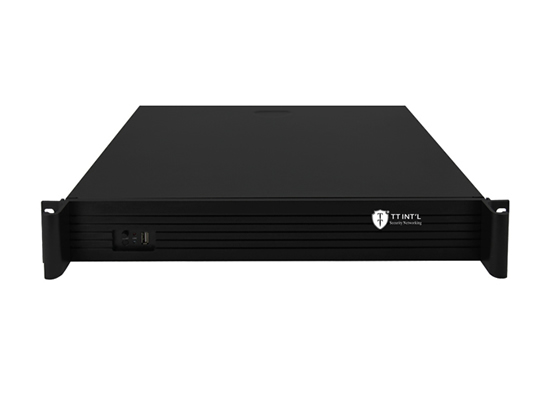

TT-NVR5364 5369 5649-z

H.265 36CH 4K/5MP/1080P 9HDD NVR

特征:

Support for H. 265/H.264 encoding format streaming access and decoding output;

Embedded LINUX operation system;

P2P cloud service, including cloud connecting, cloud monitoring, cloud transmitting to access IPC and NVR at any time and any place;

Support ONVIF protocol, support High profile S, High profile G, compatible with different IP camera that based on ONVIF, RTSP standard;

Support sync video recording, playback, remote monitoring, backup;

Offer CMS for free


咨询

产品规格 发询盘 相关产品



Model Number

 TT-NVR5369

 Operating   System

 Embedded   LINUX   operating system

 Image Code     Control

 Image code     quality adjustable, variable bit stream  and constant bit   stream optional

 Dual   Stream

 Each   channel can   set main stream and sub stream

 Video   Standard

 H.265/H.264

 Monitoring   Image   Quality

 4K / 5MP /   3MP /  1080P / 960P / 720P

 Image   Motion   Detection

 Each   screen can   set multiple detection areas and set 6-  level   sensitivity

 Recording     Playback Quality

 Any 4ch 4K     playback/ 9ch 5MP playback /16ch 1080  playback simultaneously

 Region   Cover

 Every   channel   can set 4 cover regions(IPC Support)

 Recording   Mode

 Support   manual ,   auto, dynamic detection, alarm  trigger record mode

 Backup Way

 Support U   disk,   USB mobile HDD, USB DVD-RW,  network storage and backup

(Partly needs IPC   Support)

 Operation   Way

 Mouse,   Keyboard

 Local   Login

 Username   and   password

 Recording     Storage

 Local HDD,     network

Intelligent   Analysis Channels

8CH

Intelligent   Analysis Function

Target Counting,     Object Detection, Area Detection, Virtual Cordon, Sound Alarm, License   Plate   Detection, Face Detection, Fire Detection, Video Diagnose,   Transformation   Scene, License Plate Black List

 External   Ports

 Video   Input

 ① 36×(3840*2160)+sub[960*576]+4Ref.+4Play  H.265      8M/ch 36ch 4K IP Camera

 ② 36x(2592*1944)+sub[960*576]+4Ref.+9Play  H.265      8M/ch 36ch 5MP IP Camera

 ③ 36x(1920*1080)+sub[960*576]+4Ref.+16Play  H.265     4M/ch 36ch 2MP IP Camera

 Audio   Input

 36ch   network   audio input

 Video   Output

 1ch   VGA+1ch HDMI

 Audio   Output

 1ch RCA   output

 Network   Port

 1     RJ45,10M/100M/1000M self-adaptive LAN port

 RS485 Port

 Full   duplex   standard 485 port

 USB Port

 1USB 3.0   port, 2   USB 2.0 ports

 Alarm   Input

 4ch

 Alarm   Output

 4ch

 HDD

 HDD Port

9×SATA+1×E-SATAHDDPort

 MAX   Capacity

 Each port     supports MAX 4TB HDD

 Mobile     Surveillance

 Support(   iPhone,   Windows Mobile, BlackBerry, Symbian, Android) smart phone

 Power   Supply

 ATX110-220V   250W 50-60Hz

 Power   Consumption

 ≤30W(without HDD)

 Working     Temperature

 -10℃~+55℃

 Working   Humidity

 10%-90%

 Dimension

 Equipment: 440mm×432mm×90mm,   Packing: 539mm×550mm×225mm

 Weight(without     HDD)

 N.W.:   7.4Kg; With Package: 9.8Kg

 Outside   Carton

 2pcs /   carton. 555mm×545mm×470mm; Weight: 21Kg

 Installation   Way

 Desktop     Installation
