2.5 Inch 2MP 3X HD Mini IP PTZ Dome-IP PTZ

—————— Наши продукты ——————

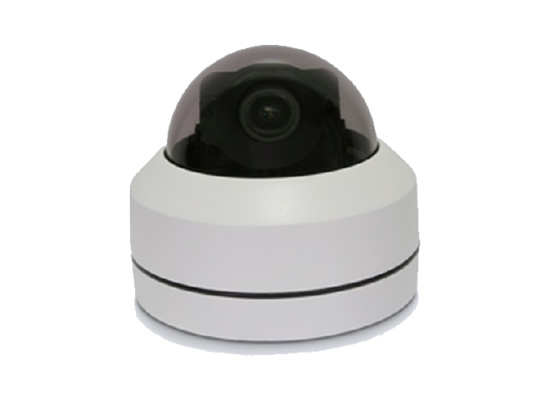

2.5 Inch 2MP 3X HD Mini IP PTZ Dome

Особенности:

● 2.0mp 1/2.8’’ Low illumination CMOS, 4X optical zoom;

● Support Onvif protocol GB/T28281, work with Hikvision, Dahua, XM

● Support lightning protection, anti-surge;

● Outdoor speed dome camera protection grade:IP66;

● Support Chinese and English IE interface and have operation tips function, user interface friendly;

Feature：

● Adopt 1 pcs infrared light, Effective exposure distance up to 20m

● Horizontal rotation 355 ° continuous rotation, Vertical 0 ° -90 °, support auto flip, no monitoring blind spot.

● Pan speed max 25°/s, tilt speed max 20°/s

● Pan speed 0°/s～25°/s, tilt speed 0°/s～20°/s,

● Support 16 presets,1 patrol, 1patterns,support AB scan;

● Proportional zoom function, rotation speed can be adjusted automatically according to zoom multiples

● Support park action, presets/pattern/patrol/pan scan can invoke automatically after a defined time of inactivity

Application：

Can be widely used in the need for a wide range of high-definition quality monitoring sites, the use of scenarios: warehouse, underground. Parking, access, staircase, supermarkets, Internet cafes, etc.

Запрос

Характеристики Отправить запрос Сопутствующие товары

Model	TT-MIPPTZ2M3X
Image sensor	1/2.9CMOS
Resolution	1920X1080
Low illumination	color:0.2Lux@F1.2; black-white 0.01Lux@F1.2
Signal / scan system	PAL/NTSC; Progressive
Electronic shutter	Auto/manual (1/5——1/50000s)
Day-night mode	Auto ICR
Optical zoom	2.8-8mm (3X)
Pan angel	106.6°- 51.8°
IR distance	20M
Pan speed	Horizontal rotation 355 ° continuous rotation，0°～25°/S
Tilt speed	0-20°/S
Tilt range	0°- 90°
Proportional zoom	Support, change the speed based on the zoom
Preset	16
Patrol	1
Pattern scan	1
A.B scan	Support
Park function	Support, preset, cruise, pattern scan, two-point line sweep, horizontal automatic
Max image size	1920X1080
Output bit rate	32Kbps——16Mbps
Video compression	H.264/MJPEG
Network protocol	TCP/IP, HTTP, DHCP, DNS, DDNS, RTP, RTSP, PPPoE, SMTP, NTP, UPnP
Interface protocol	Onvif, Hikvision, Dahua, XM protocol
Network interface	Built-in RJ45 network interface, support 10M/100M IP DATA
Application interface	Provide Linux, NindoNs SDK develop bag and CGI protocol, can be second fast developed
Browser	Support IE7, IE8, IE9, Chrome8+, Firefox3.5+, Safari5+
PTZ Control Protocol	pelco-d, pelco-p, HIKVISIO, DAHUA
Power Consumption	DC 12V1A, 10W(max)
Working Temp./Humi	-20℃～+60℃, ≤90%RH(no frostless)
Protection Grade	TVS3000V lightning protection, surge protection and voltage transient protection, weather proof (for outdoor): IP66
